50HP Explosion-Proof Condensing Unit with Piston Compressor 380V

  • 50HP Explosion-Proof Condensing Unit with Piston Compressor 380V
  • 50HP Explosion-Proof Condensing Unit with Piston Compressor 380V
  • 50HP Explosion-Proof Condensing Unit with Piston Compressor 380V
  • 50HP Explosion-Proof Condensing Unit with Piston Compressor 380V
  • 50HP Explosion-Proof Condensing Unit with Piston Compressor 380V
Место происхождения Шанхай, Китай
Фирменное наименование KUB
Сертификация CE
Количество мин заказа 1
Цена $19,000-20,000

Свяжитесь я бесплатно образцы и талоны.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Масса 1500 кг Хладагент R404A
Тип компрессора поршень Лошадь 50hp
Напряжение 380V/3PH/50 Гц Зона теплообмена 480 м²
Количество поклонников конденсатора 3 шт Диаметр лезвия 630 MM
Объем воздуха 3*12420 мграни/ч Всасывающая труба 54 мм
Выходная труба 35 мм Длина 3850 mm
Ширина 1000 мм Высота 2000 мм
Основные компоненты Компрессор
Выделить

50HP explosion-proof condensing unit

,

piston compressor refrigeration unit

,

380V industrial condensing unit
Оставьте сообщение
Характер продукции
KUB-FV-50XXM 50HP Explosion-Proof Condensing Unit
Product Overview
The KUB-FV-50XXM is a reliable 50HP explosion-proof condensing unit featuring hot fluorine defrost refrigeration technology. Designed for demanding industrial applications, this unit combines robust construction with efficient performance.
Key Specifications
Attribute Value
Weight 1500 KG
Refrigerant R404A
Compressor 50HP piston compressor
Voltage 380V/3Ph/50Hz
Warranty 1 Year
After-sales Service Online support
Application Chemical warehouse
Origin Shanghai
Technical Specifications
Model Horsepower Voltage Heat Exchange Area (m²) Condenser Fan Qty Blade Diameter (mm) Air Volume (m³/h) Suction Pipe (mm) Outlet Pipe (mm) Dimensions L×W×H (mm)
KUB-FV-50XXM 50HP 380V-3PH-50HZ 480 3 630 3×12420 54 35 3850×1000×2000

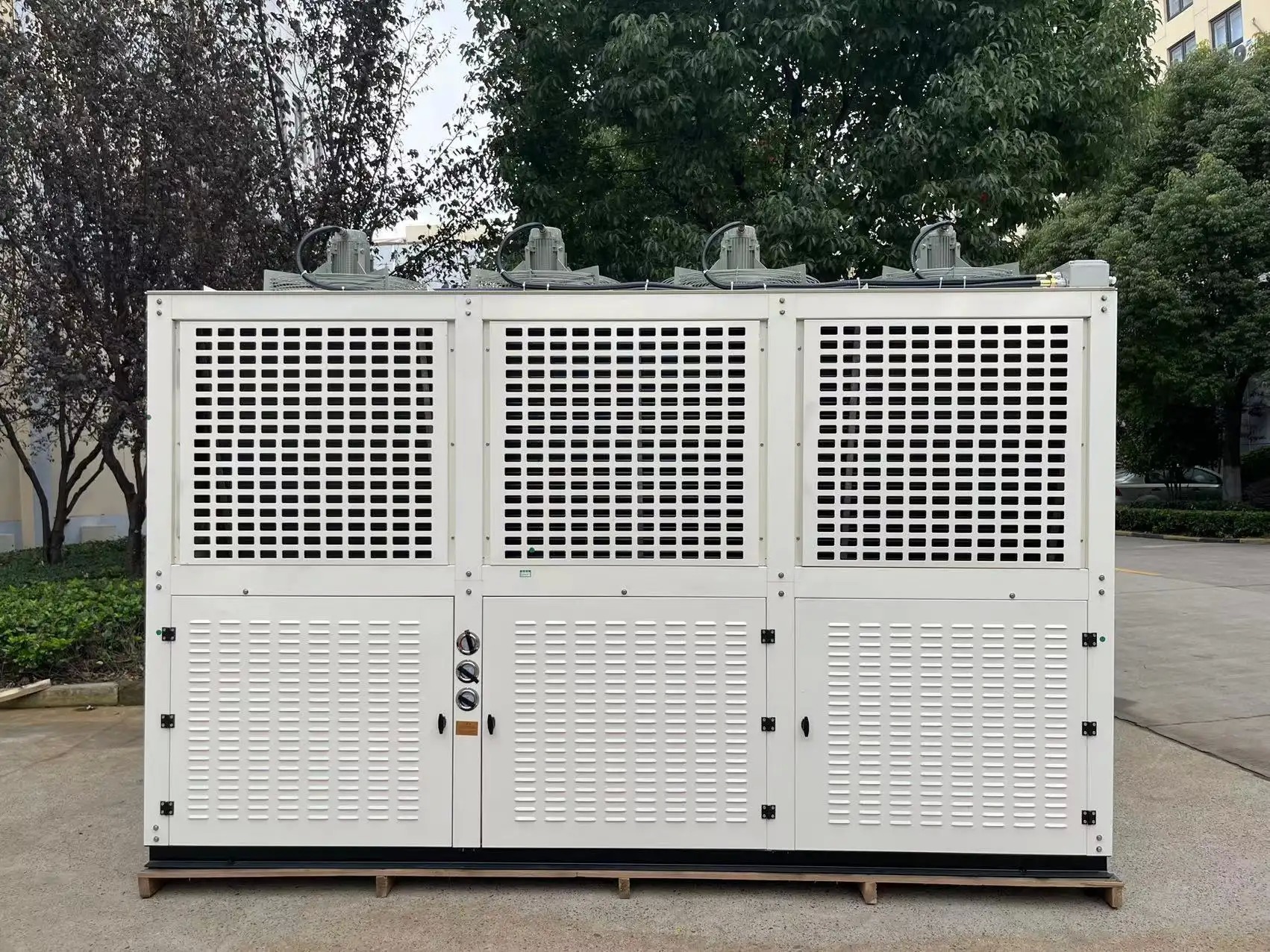

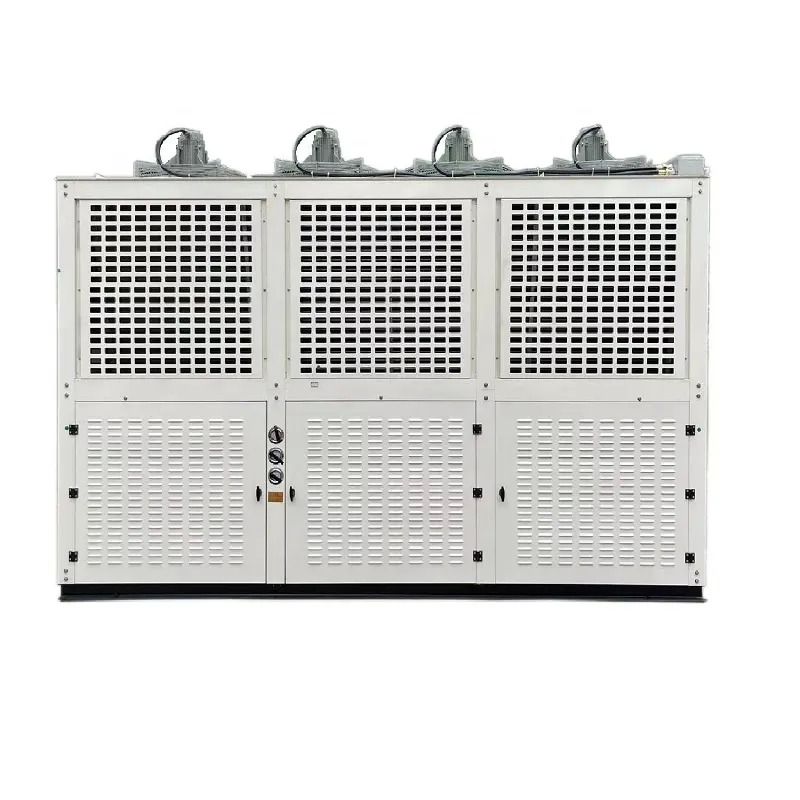

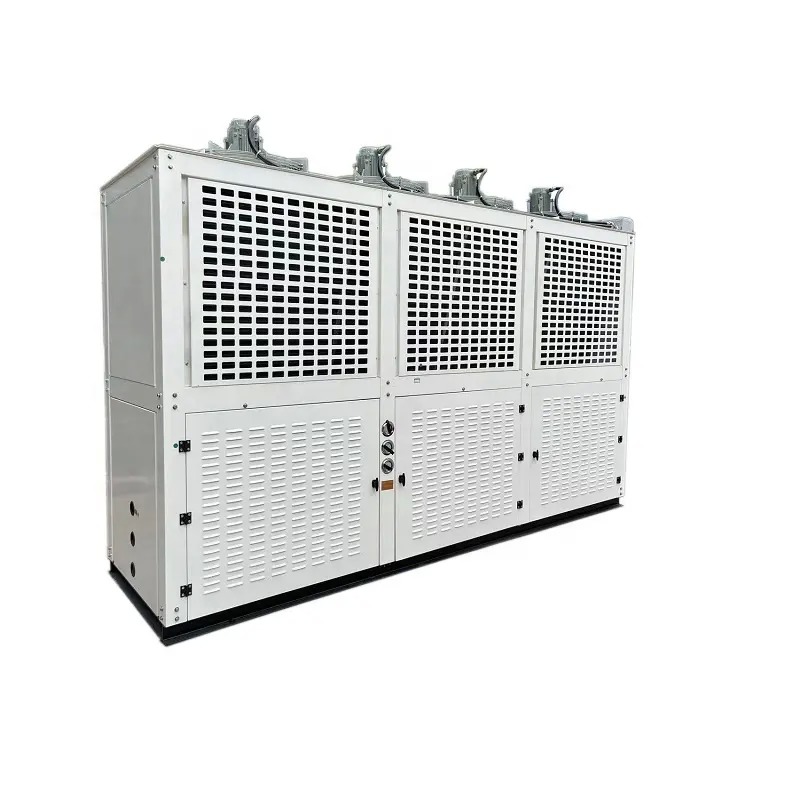

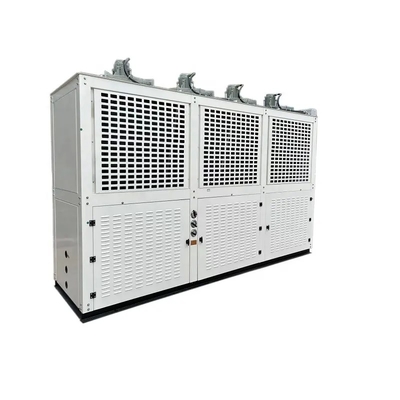

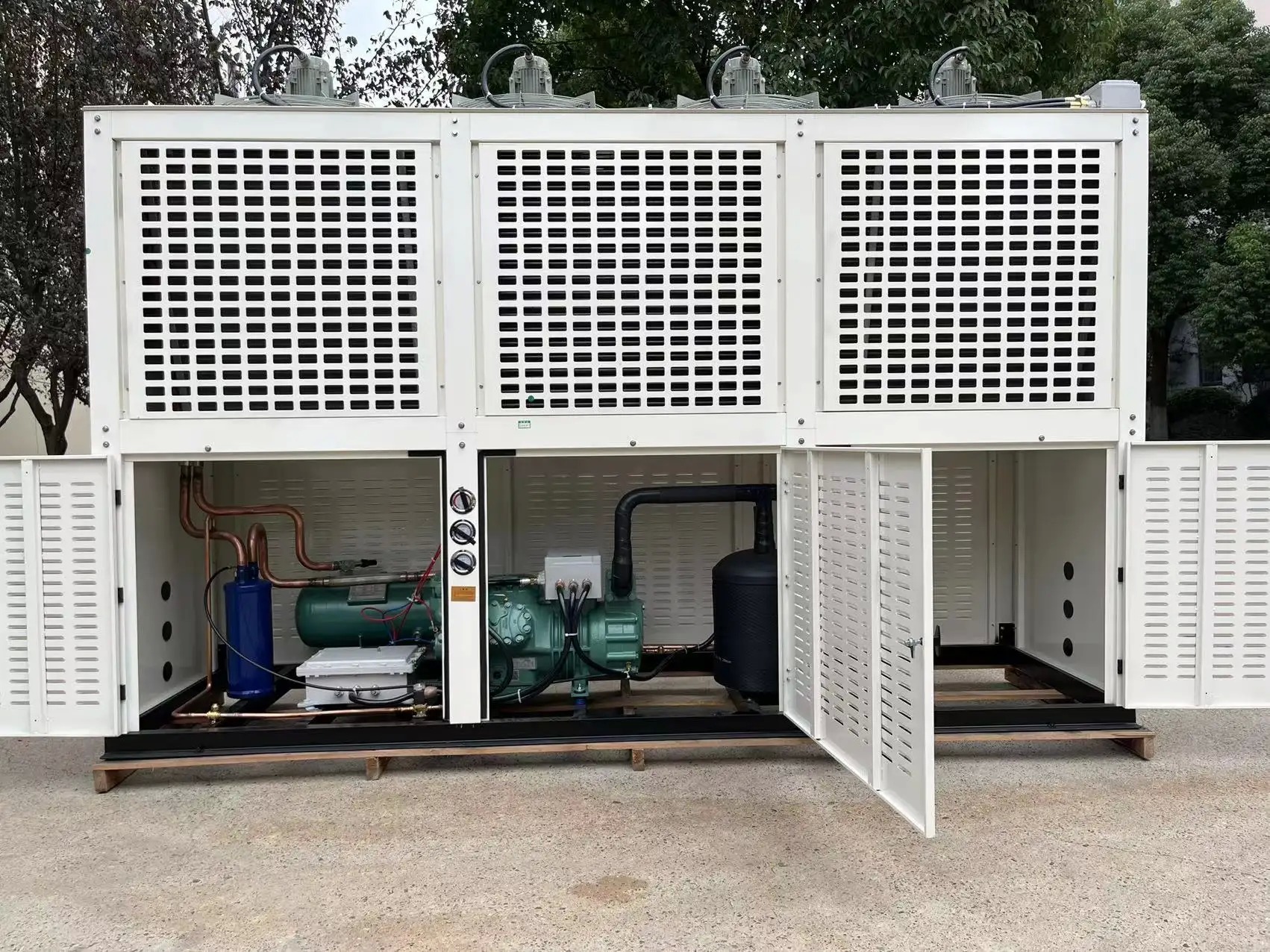

Product Images
50HP Explosion-Proof Condensing Unit with Piston Compressor 380V 0
50HP Explosion-Proof Condensing Unit with Piston Compressor 380V 1
50HP Explosion-Proof Condensing Unit with Piston Compressor 380V 2
50HP Explosion-Proof Condensing Unit with Piston Compressor 380V 3
50HP Explosion-Proof Condensing Unit with Piston Compressor 380V 4
50HP Explosion-Proof Condensing Unit with Piston Compressor 380V 5
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are the factory that produces condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: Available shipping methods include express, air, and sea freight.
Q3: What are the payment methods & terms?
A3: We accept T/T, Paypal, Western Union, and cash. Standard terms are 30% deposit with 70% balance before shipment.
Q4: What's your delivery time and loading port?
A4: Typically 35-60 days after payment. Loading port is Shanghai, or other Chinese ports per your requirements.
Q5: Can I have a sample first?
A5: Samples are available at cost.
Q6: How do you ship the goods and how long does it take to arrive?
A6: We ship via LCL/FCL sea freight (≈30 days), air freight (5-7 days), or express delivery.
Packaging & Warranty
Customization: We provide design services for refrigeration applications in agriculture, food service, chemical industries, and cold storage engineering.
Warranty: KUB offers a comprehensive 1-year warranty. We stand behind our product quality and provide excellent after-sales service.
